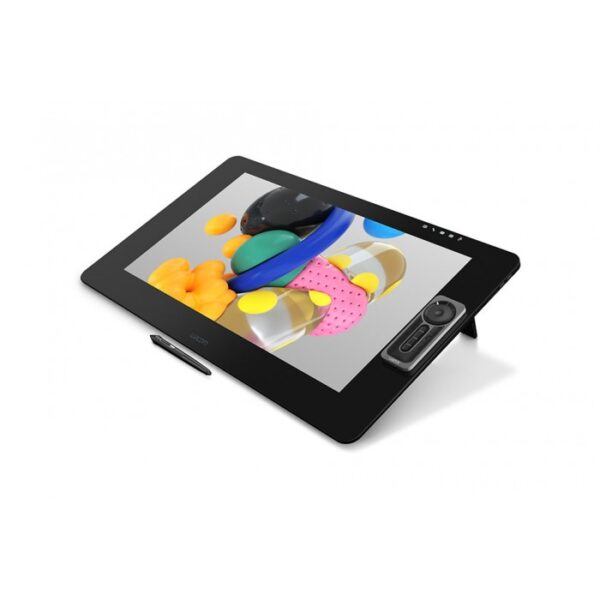

Wacom Cintiq Pro 32 Inch – Pen & Touch

Description

Product Type: Creative Pen Display 32
Model Number models:
DTH-3220 creative pen display touch
Technology: IPS 4K UHD high brightness panel
Displayable Colors (maximum)1.07 billion colors (10 bits color)
Aspect Ratio: 16:9
Viewing Angle: 176° (88°/88°) H, (88°/88°) V
Contrast Ratio: 1000:1
Brightness: 350 cd/m2
Response Rate: 14 ms
Color Gamut: 99% Adobe RGB
Industry Standard Pre-sets: 6500° K whitepoint default
Graphics Input: USB type C port (supporting DisplayPort Alternate Mode) or DisplayPort or HDMI 2.0 port (required for 3,840 x 2,160 resolution)
Multi-touch: Yes – on touch model only (DTH-3220)
Pen: Wacom Pro Pen 2
Pressure Level: s8192, both pen tip and eraser
Tilt Range: 40 degrees
Tilt Recognition: ±60 levels
Type: Pressure-sensitive, cordless, battery-free
Switches: Tip switch, 2 side switches, eraser
Nibs: 10 (6 standard, 4 felt) in pen stand
Pen Box/Holder: Yes – Pen Holder
Pen StandYes
GripLatex-free silicone rubber
TechnologyPatented electromagnetic resonance method
Resolution5080 lpi
Expresskeys™17 customizable, application-specific on
included ExpressKey™ Remote
Touch RingYes – on included ExpressKey Remote
Touch StripsNo
Rocker Ring And Home ButtonYes – on included ExpressKey Remote
Radial MenuYes
Precision ModeYes
Display ToggleYes
Dedicated Pan, Scroll, Zoom, Brush SizeYes
ExpressKey™ Remote Dimensions135 x 52 x 10 mm
(5.3 x 2.0 x 0.4 in)
ExpressKey™ Remote Continuous OperationUp to 160 hours, if a key is pressed every 30 seconds
ExpressKey™ Remote Charge TimeUp to 2 hours
Cables IncludedUSB to USB cable (3m), DisplayPort to DisplayPort cable (3m), HDMI2.0 to HDMI2.0 cable (3m),USB-C to USB-C cable (1.5m), DisplayPort to Mini DisplayPort adapter, MicroUSB to USB cable (30 cm; for ExpressKey Remote)
PC and Mac Connection RequirementsUSB-C supporting DisplayPort Alternate Mode (DP Alt), or DisplayPort and standard USB-A, or HDMI port and standard USB-A port
Ports included4 x USB3 ports*
1 x USB C port
1 x HDMI2.0 port
1 x DP port
2 USB-A Ports (one for ExpressKey Remote dongle)
*When connected to host computer over USB-C (including Cintiq Pro Engine), Cintiq Pro USB 3.0 ports run at USB 2.0 speeds to accommodate 4K video bandwidth over USB-C.
AudioAudio headset jack, built-in microphone
Power Supply Input100 to 240 VAC, 50/60HZ
Power Supply Output20 VDC, 2.25 A (max)
Power ConsumptionPower ON mode (Max.): 100 W
Power sleep mode: 2.0 W or lower
Power OFF mode: 0.5 W or lower
BatteryRechargable Li-ion battery on include ExpressKey Remote
SecurityKensington® Lock Port (lock purchased separately)
System RequirementsPC: Windows® 7 or later (latest service pack/build),
Mac: OS X 10.11 or later (latest update); USB-C port with DisplayPort Alternate Mode (UHD), or Mini DisplayPort/DisplayPort (UHD) and USB-A, or HDMI 2.0 (UHD) and USB-A; Internet access for driver download.
What’s Included Wacom Cintiq Pro 32 touch,
Wacom Pro Pen 2 with 4-color pen ring set,
ExpressKey™ Remote (with USB-A RF dongle and 30cm micro-USB to USB charger cable),
Pen stand with 10 replacement nibs (6 standard, 4 felt) and nib removal tool,
Pen holder,
180W AC adaptor and 1.8m power cable, 1.5m USB-C to USB-C cable, 3m DisplayPort to DisplayPort cable, 3m HDMI2.0 to HDMI2.0 cable
3m standard USB-A to USB-A cable,
DisplayPort to Mini DisplayPort adapter,
Quick Start Guide, Regulation sheet, Cleaning cloth
CertificationsVCCI Class B, FCC Part 15 Subpart B (class B) and C, CE, IC ICES-003 and 210, RCM, KCC, BSMI, C-tick, CB, CCC, GOST-R, China RoHS, Korean RoHS, EU RoHS
Limited Warranty1 year in Japan & Asia Pacific
